Automatic CNC lathe DKCK-X100 series

The fully automatic CNC lathe adopts the Siemens system, equipped with a built-in high-speed truss manipulator, which can realize the rapid processing of parts with the vibration plate and the turntable silo. Can be combined with the steering chuck for single-clamping, multi-face machining, such as cross universal joints, L-joints.

CNC automatic lathe DKCK-PS100 series

The CNC lathe is controlled by Siemens CNC system, and the horizontal and vertical are driven by servo. The robot automatically feeds, and the fastest feeding speed is only 0.5 seconds. According to the processing procedure, multiple wiring lines can be designed to realize one-man multi-machine automatic processing. Suitable for mass production of high precision parts.

Hydraulic automatic lathe series (four lines) DK-HP62

The hydraulic automatic lathe is controlled by computer programming, and the horizontal and vertical are driven by hydraulic pressure. The robot automatically feeds, and the fastest feeding speed is only 0.5 seconds. According to the processing procedure, multiple wiring lines can be designed to realize one-man multi-machine automatic processing. Suitable for mass production of single parts.

Automatic bearing ring production line

The DKCK-LF-35 series CNC lathe production line is suitable for automatic machining and large-scale mass production of high-precision bearing rings.

new

Automatic bearing ring production line (four lines) DK-CS80 series

Suitable for automatic machining and large-scale mass production of bearing rings.

Double spindle CNC lathe DKCK-ST80

Double-spindle CNC lathe(DKCK-ST80),equals two sets of high precision CNC lathes,combined with automatic loading and unloading conveyor.It occupies less working space,avoids workpiece injury,saves energy,has high efficiency etc.

Automatic hydraulic lathe DK-CS80 series

Suitable for machining automotive parts, bearing rings, complex shafts and sleeves.

Details

Best choice for complex shaft & ring parts


Apply to machining for automotive parts, bearing ring,complex shaft & ring parts.

1、主要技术参数
项目 单位 参数
加工范围 最大回转直径 mm Ø420
最大夹持直径 mm Ø100
车削长度 mm 270
主轴电机 输出功率 kw 5.5~7.5
最高转速 r/min 5500
液压泵 输出功率 kw 1.5
拖板最大行程 Z轴 mm 400
X轴 mm 470
设备精度 径向跳动 mm <0.01
轴向跳动 mm <0.01
定位精度 mm 0.003~0.005
重复定位精度 mm 0.002~0.004
设备外形尺寸(长宽高) mm 2400*1900*2000
设备净重 kg 2000
气动原件 亚德客
导轨 直线导轨(台湾上赢)
丝杆 滚珠丝杠(台湾上赢)
控制系统 西门子808D
驱动类型 伺服电机
电器元件 施耐德(法国)
排刀方式 台湾六鑫刀塔
主轴 主轴单元(高精密进口轴承)
2、轴承套圈加工精度(单位mm)
内圈 外圈
项目 标准 项目 标准
直径尺寸重复定位误差 <0.02 直径尺寸重复定位误差 <0.02
壁厚差 <0.02 壁厚差 <0.02
圆度误差 <0.02 圆度误差 <0.02
防尘槽高度重复定位误差 <±0.02 防尘槽高度重复定位误差 <±0.02
粗糙度 ≤1.6 粗糙度 ≤1.6

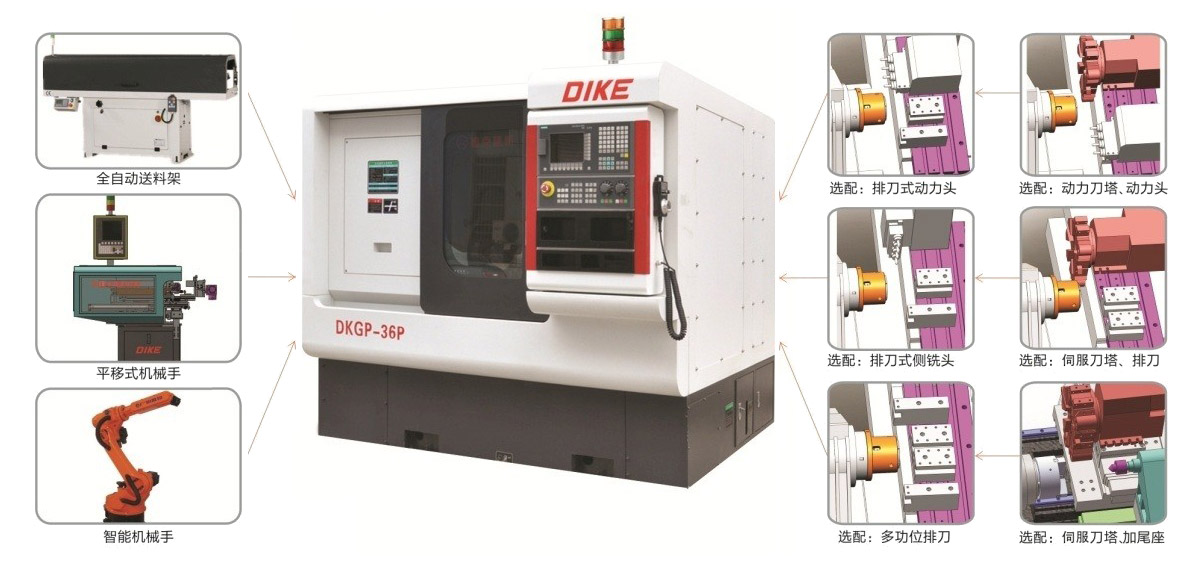

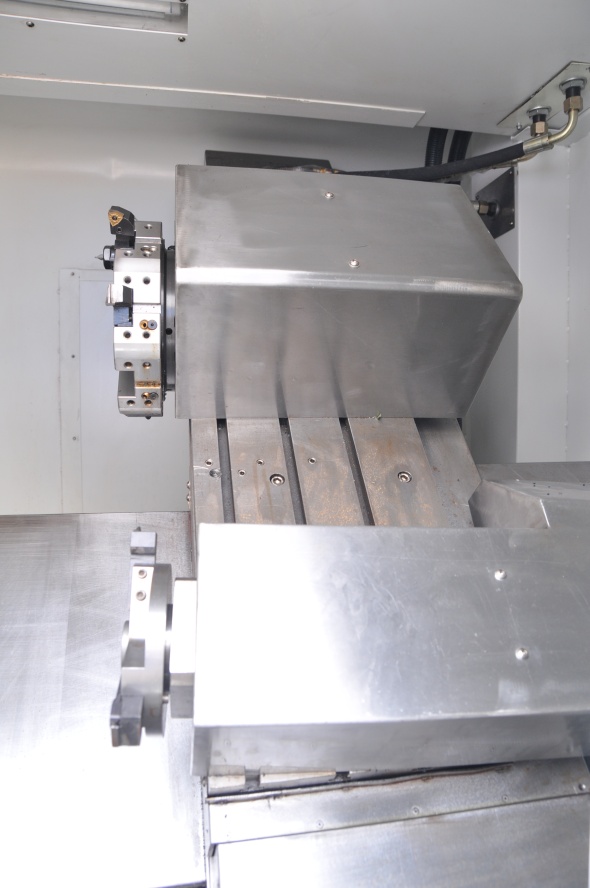

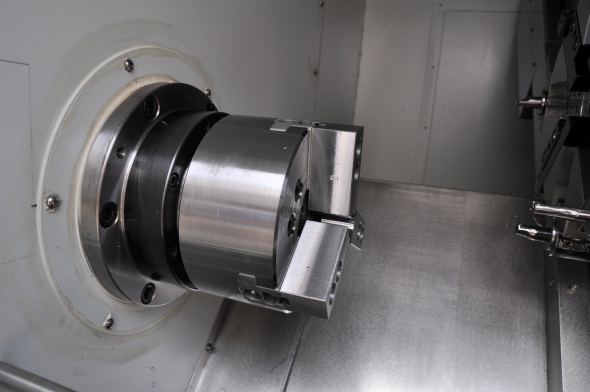

Machine Composition

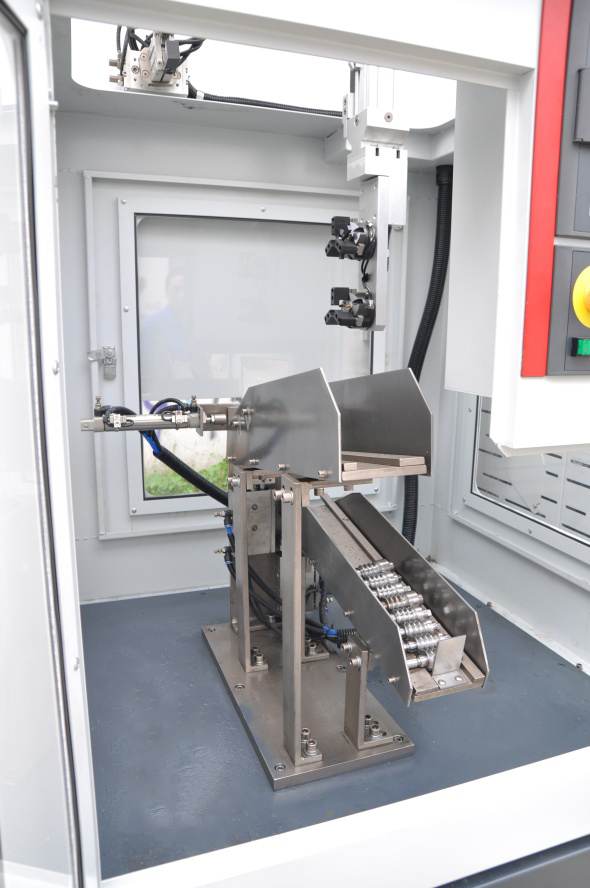

All Kinds of Conveyor Solution

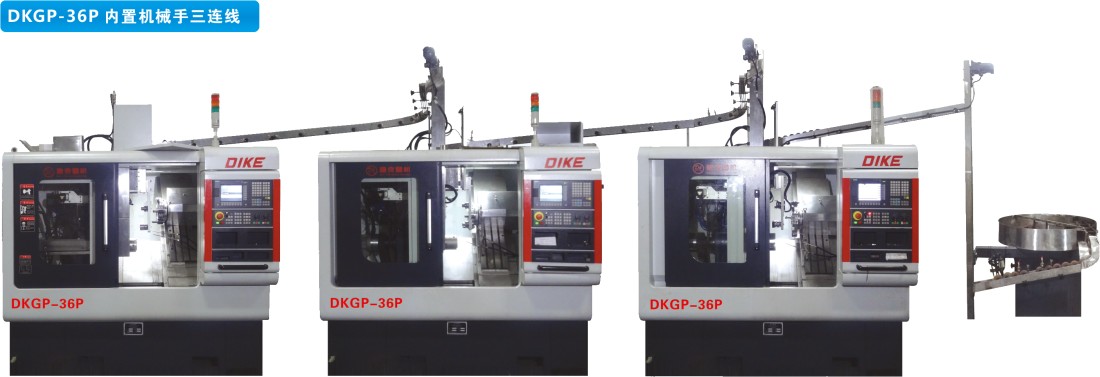

DKGP-36P Built-in Mechanical arm for 3 machine connection line


Three machines connected to realize loading, unloading, clamping and machining with high productivity, specially fit with batch production.

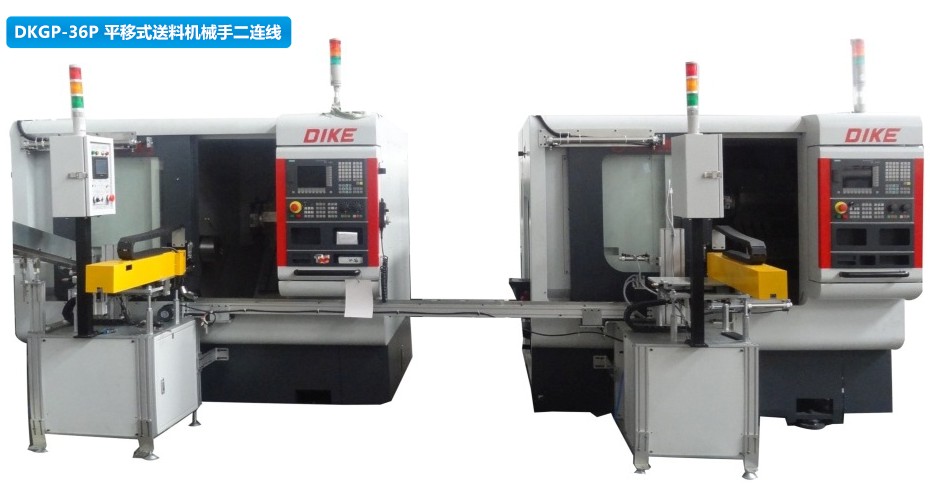

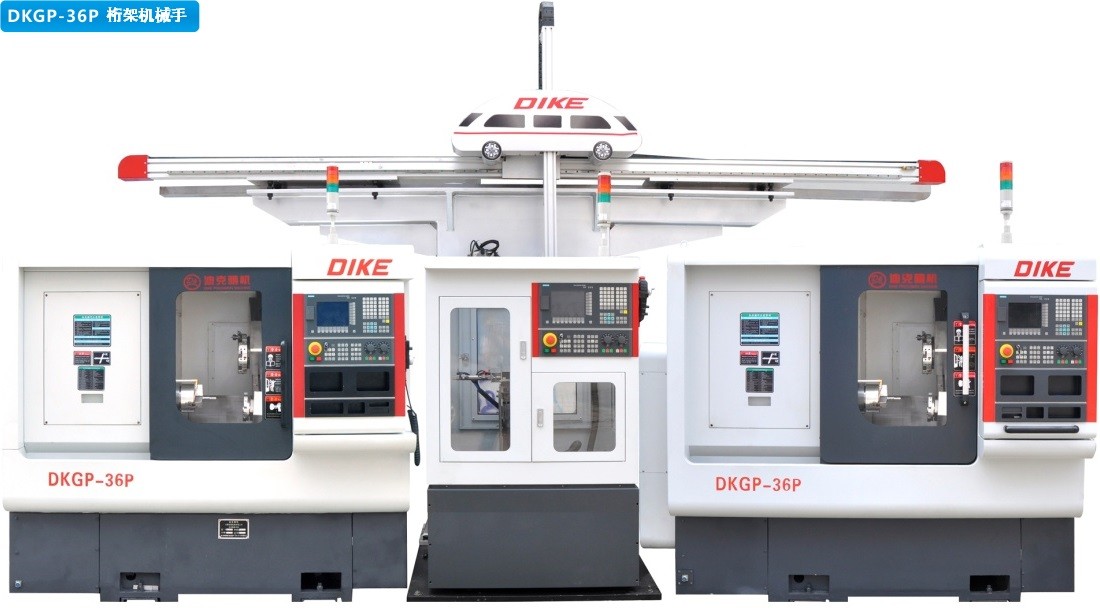

DKGP-36P Two machines connected, plus flat-moving type mechanical arm.


Euipped with Dike flat moving type Mechanical Arm. Conveyor to realize automatic machining line with high productivity.

Machining Cases



On-Site Show

Downloads

Videos

Parts processing video display—— Customized automated processing solutions based on customer parts

Partners
